Master Power Front Disc Brake Conversion - 68-72 F100

DB1551B

Master Power Front Disc Brake Conversion - 68-72 F100

$1,560.00

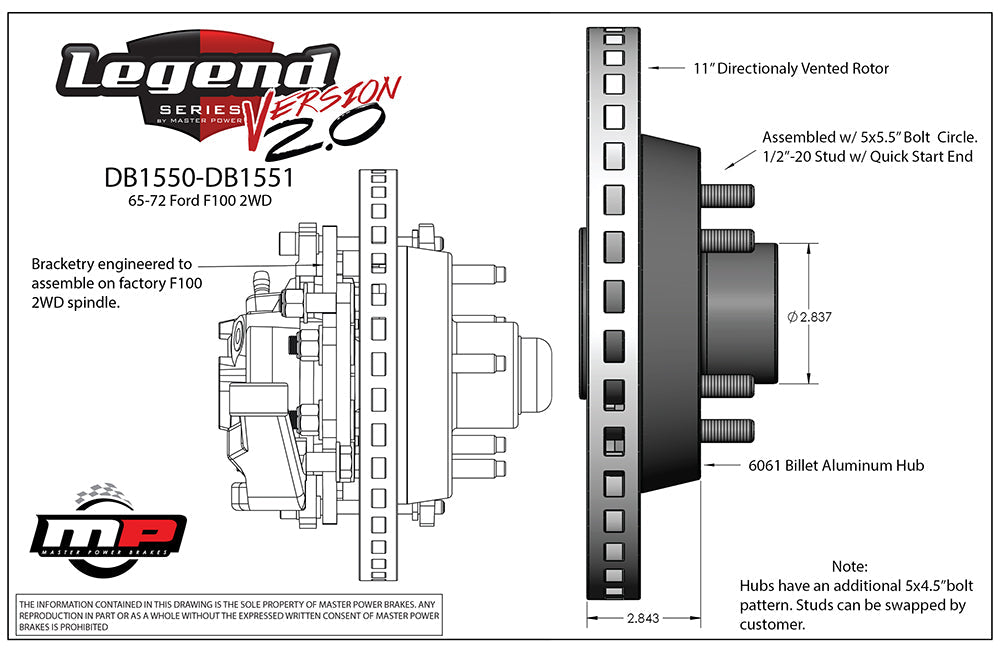

A cost effective option with a twist. - The Legend Series has been a staple of Master Power Brakes since its inception. The Legend Series Version 2.0 takes that classic offering one step further. It is still a complete brake system designed to upgrade your drum brakes to the reliability and performance of disc brakes. There are times however that a conventional rotor just will not cut it. The Version 2.0 uses a two-piece rotor that consists of a billet aluminum hub with a directionally vented rotor which allows us to adjust things such as track width that might not have been available otherwise. Installation is still a weekend project that will pay dividends for many years to come.

Fitment Notes:

A minimum of a 15" wheel is required. Not all stock steel 15" wheels will work. Use the template to verify wheel fitment. Rotors have both a 5 x 5-1/2" pattern (studs installed) and a 5 x 4-1/2" pattern. Designed to work on OE drum brake spindles.

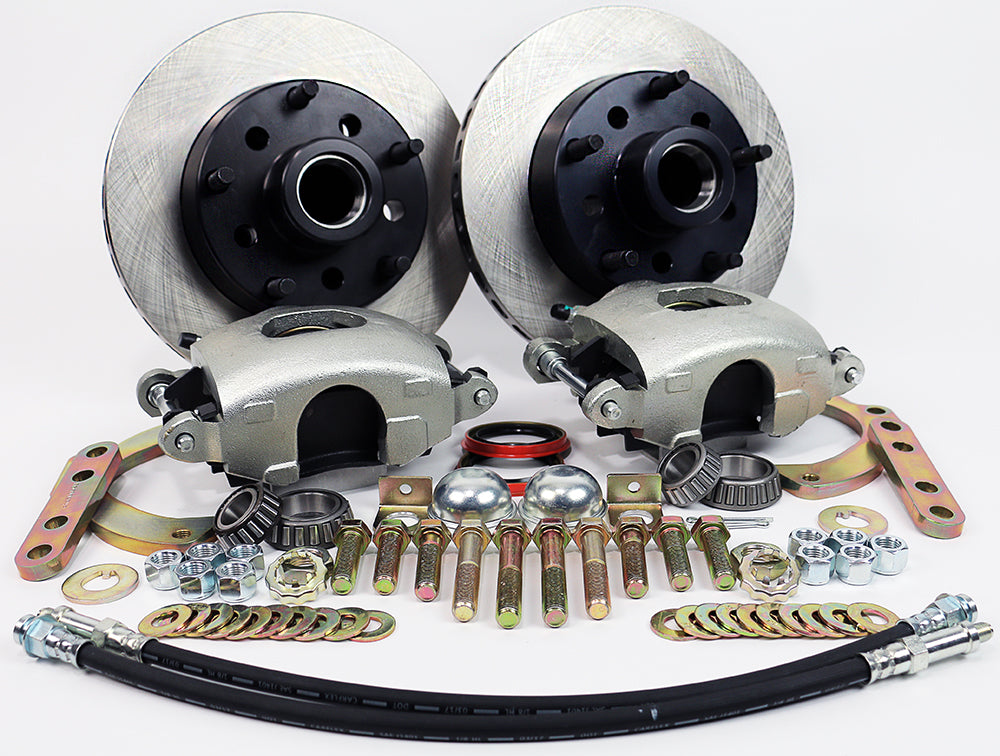

When choosing the Front Wheel System, you will receive the following items:

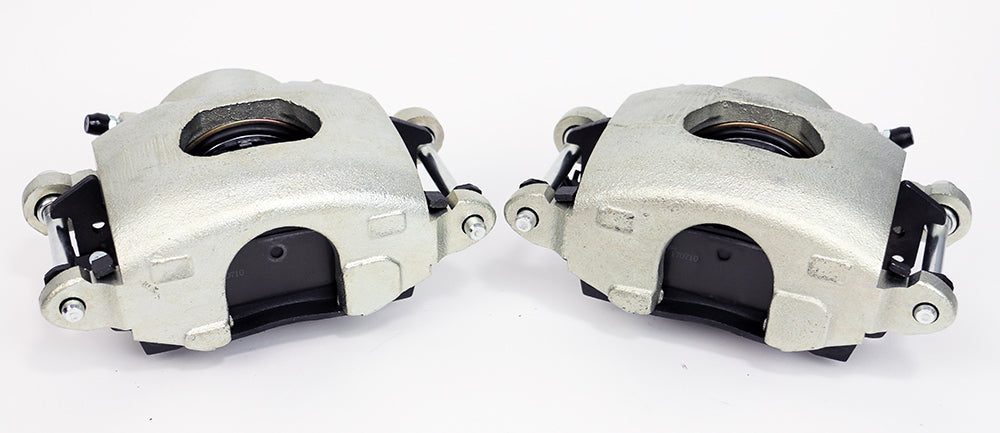

Single Piston D52 OE Calipers - Silver zinc finish w/stainless steel pistons
High Quality Semi-Metallic Brake Pads

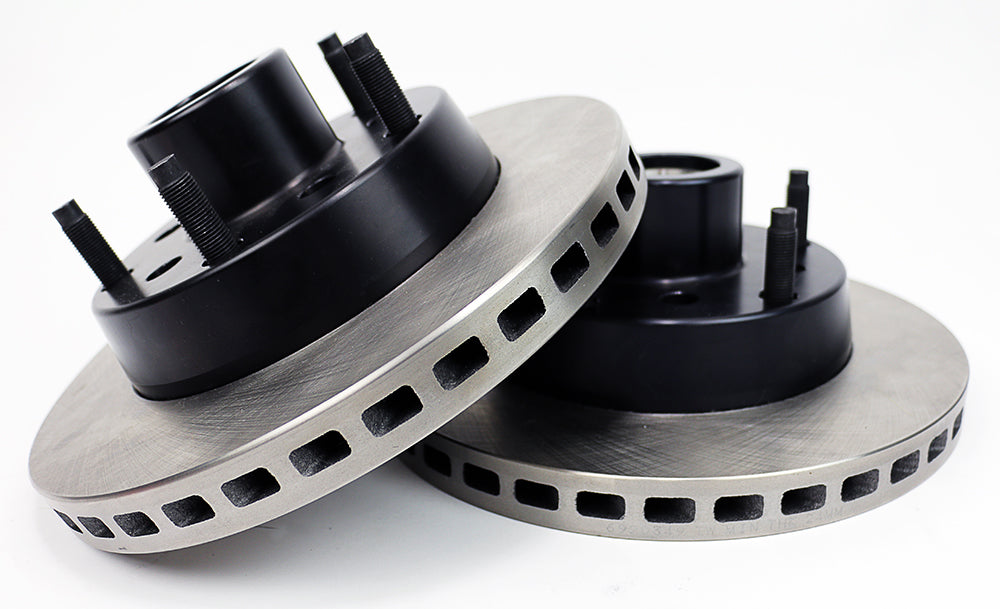

11-1/8 inch Directionally Vented 2-piece Rotors with Aluminum Hubs
Laser Cut and Zinc Plated Steel Primary Caliper Mounting Bracket
Laser Cut and Zinc Plated Steel Secondary Caliper Mounting Bracket
Wheel Bearings and Grease Seals
Grade 8 Hardware
Spindle Nuts & Washers
Dust Caps
Rubber Brake Hoses

Downloads:
Installation Instructions
Wheel Fitment Template
Template Instructions
F100 Rotor Graphic
